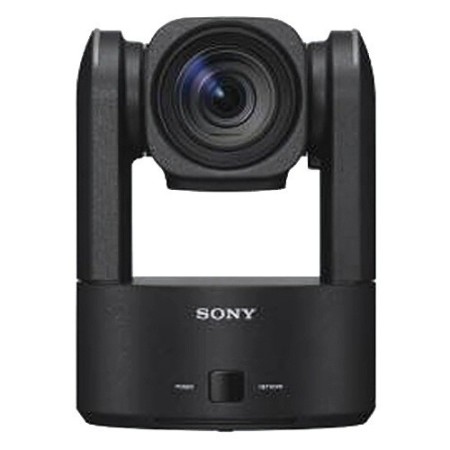

Sony BRCAM7 Premium PTZ Auto Framing Camera with AI Analytics

Dramatically improved imaging performance Images captured over a 20x optical zoom range that covers everything from wide angles to close-ups are delivered as high-quality 4K 60p output. In addition, interoperability with existing systems has been improved by incorporating ITU709/709tone, S-Cinetone™, and S-Log3 support.

€16,232.00 Tax included

€13,640.34 Tax excluded

new_releases Call for Availability 77777383

local_shipping FREE shipping on orders over €50.00.

  • Mass
    Approx. 3.5 kg
    Approx. 7 lb 11.5 oz
  • Dimensions (W x H x D) *a
    Approx. 168.7 × 225.2 × 192.3 mm
    Approx. 6 3/4 × 8 7/8 × 7 5/8 inches
  • Power Requirements (DC In)
    DC 12 V
    (11.0 V to 17.0 V)
  • Power Requirements (PoE)
    PoE++ (IEEE 802.3bt Type 4 Class 8 compliant)
  • Power Consumption (DC In)
    ≦132 W (DC 12 V)
  • Power Consumption (PoE)
    ≦71.3 W (PoE++)
  • Operating Temperature
    0 °C to 40 °C
    32 °F to 104 °F
  • Storage Temperature
    -20 °C to +60 °C
    -4 °F to +140 °F
  • Quietness *b
    NC25 or less
  • Body Color
    Black / White
  • Imaging Device (Type)
    1.0-type (13.2 mm x 8.8 mm) Exmor RS CMOS sensor
  • Number of Pixels (Total)
    Approx. 20.9 megapixels
  • Number of Pixels (Maximum Effective)
    Approx. 14.0 megapixels
  • Optical Low-Pass Filter
    Yes
  • F-number (Maximum aperture)
    F2.8 to F4.5
  • Focal Length
    f = 0.3 to 6.07 in
  • Focal Length (35 mm format equivalent)
    0.94 to 18.9 in
  • Focus range (from the front of the lens)
    Approx. 0.39 in to infinity
  • Horizontal Viewing Angle
    Approx. 75 deg.
  • Vertical Viewing Angle
    Approx. 46 deg.
  • Optical Zoom
    20x
  • Clear Image Zoom
    Approx. 1.5x (QFHD), Approx. 2x (FHD)
  • Digital Zoom
    No
  • Tele Convert Mode *c
    Yes (1.5x)
  • Focusing System
    Auto / Manual
  • Focus Type
    Fast Hybrid AF (phase-detection AF / contrast-detection AF)
  • Focus Point
    Max. 475 points (phase-detection AF)
  • Focus Recognition Target
    Human
  • Focus Area
    Wide / Zone / Flexible Spot
  • Focus Features
    AF Subj. Shift Sensitivity
    AF Transition Speed
    AF Assist
  • Minimum Illumination *b
    1.2 lx (typical)
    (3840 x 2160 / 29.97p mode, F2.8, +36 dB gain, SS=1/30 sec, BaseLook=ITU709)
  • Gain
    -3 dB to +36 dB (every 1 dB, SDR ITU709)
  • ISO Sensitivity
    ISO 250 to 16000
  • Shutter Speed
    64 frames to 1/8000 sec
  • Color Temperature Range
    2000 K to 15000 K
  • Base Look
    [S-Cinetone] / [ITU709] / [709tone] / [s709] / [709 (800%)] / [S-Log3] / [HLG Live] / [HLG Mild] / [HLG Natural]
  • Soft Skin Effect
    Yes
  • Built-in ND filter
    Clear, linear variable ND (1/4ND to 1/128ND)
  • Night Shot
    Yes
  • Auto ICR (Auto mode of IR Cut filter Removal)
    No
  • Day/Night
    No
  • Visibility Enhancer
    No
  • Image Stabilizer
    Yes *g
  • Image Flip
    No
  • Picture Setting File
    No
  • Pan angle
    -175 deg. to 175 deg.
  • Tilt angle
    -30 deg. to 210 deg.
  • Pan Speed
    0.004 deg./sec to 180 deg./sec
  • Tilt Speed
    0.004 deg./sec to 180 deg./sec
  • Ramp Curve
    9 steps
  • Preset Position
    100
  • Preset Speed Unit
    Speed/Time
  • Picture Freeze Preset
    No
  • PTZ Motion Sync
    Yes
  • PTZ Trace
    No
  • SDI Output
    SDI OUT1: BNC (x1), 12G-SDI, 6G-SDI, 3G-SDI (Level A/B), HD-SDI
    SDI OUT2: BNC (×1), 3G-SDI (Level A)
  • HDMI Output
    Type-A connector (x1)
  • Optical Output
    SFP+ compliant *e
  • UVC Output
    No
  • Output Format SDI OUT1
    3840 x 2160 / 59.94p, 50p, 29.97p, 25p, 23.98p,
    1920 x 1080 / 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p, 23.98PsF, 29.97PsF, 25PsF, 23.98PsF
    1280 x 720 / 59.94p, 50p
  • Output Format SDI OUT2
    1920 x 1080 / 59.94p, 50p, 59.94i *g, 50i *g, 29.97p, 25p, 23.98p, 29.97PsF, 25PsF
    1280 x 720 / 59.94p, 50p
  • Output Format HDMI OUT
    3840 x 2160 / 59.94p, 50p, 29.97p, 25p, 23.98p,
    1920 x 1080 / 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
    1280 x 720 / 59.94p, 50p
    720 x 480 / 59.94p
    720 x 576 / 50p
  • Output Format SFP+
    3840 x 2160 / 59.94p, 50p, 29.97p, 25p, 23.98p,
    1920 x 1080 / 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p, 23.98PsF, 29.97PsF, 25PsF, 23.98PsF
    1280 x 720 / 59.94p, 50p
  • Audio Input
    XLR-type 3-pin (female) (x2),
    line / mic / mic +48 V selectable
    mic Reference: -30 to -80 dBu

    1/8 in Stereo Minijack x1, mic
  • Sync. System
    Internal/External
  • Genlock Input
    BNC (x1), 1.0 Vp-p, 75 Ω
  • TC Input/TC Output
    BNC (x1), TC IN only
  • VISCA In/Out
    RJ-45 (VISCA IN) (x1)
    RJ-45 (VISCA OUT) (x1)
  • Network
    RJ-45 (LAN) (x1), 1000BASE-T
  • Option
    RJ-45 (OPTION) (x1)
    Red Tally IO / Green Tally IO
  • IR Remote Control
    Yes
  • DC Input
    XLR-type 4-pin (male) (x1)
  • Tally Lamp
    Left (x1) / Right (x1), Red / Green / Yellow / Blue
  • Recording Function
    Yes
  • Slow and Quick Motion Function (XAVC/QFHD)
    1 to 60, 100, 120 fps
  • Slow and Quick Motion Function (XAVC S/QFHD)
    1 to 60, 100, 120 fps
  • Slow and Quick Motion Function (XAVC/HD)
    1 to 60, 100, 120, 150, 180, 200, 240 fps
  • Slow and Quick Motion Function (XAVC S/HD)
    1 to 60, 100, 120, 150, 180, 200, 240 fps
  • Media Type
    CFexpress Type A/SD card (x2) *f
  • Recording Format (Video) XAVC
    XAVC-I
    XAVC-L
  • Recording Format (Video) XAVC S
    Intra 422
    Long 422/420
  • Recording Format (Audio)
    LPCM 24 bit, 48 kHz, 4 channels
  • Recording Frame Rate (XAVC Intra)
    3840 x 2160 / 59.94p, 50p, 29.97p, 25p, 23.98p
    1920 x 1080 / 59.94p, 50p, 29.97p, 25p, 23.98p
    1280 x 720 / 59.94p, 50p
  • Recording Frame Rate (XAVC Long)
    3840 x 2160 / 59.94p, 50p, 29.97p, 25p, 23.98p
    1920 x 1080 / 59.94p, 50p, 29.97p, 25p, 23.98p
    1280 x 720 / 59.94p, 50p
  • Recording Frame Rate (XAVC S Intra)
    3840 x 2160 / 59.94p, 50p, 29.97p, 25p, 23.98p
    1920 x 1080 / 59.94p, 50p, 29.97p, 25p, 23.98p
  • Recording Frame Rate (XAVC S Long 422/420)
    3840 x 2160 / 119.88p, 100p, 59.94p, 50p, 29.97p, 25p, 23.98p
    1920 x 1080 / 119.88p, 100p, 59.94p, 50p, 29.97p, 25p, 23.98p
  • Recording Frame Rate (XAVC HS Long 422/420)
    3840 x 2160 / 119.88p, 100p, 59.94p, 50p, 23.98p
  • Proxy Rec
    Yes
  • Interval Rec
    Yes
  • Picture Cache Rec
    Yes
  • Network/Transmission Protocols for IPv6
    ICMPv6, MLD, TCP, UDP
  • Network/Transmission Protocols for IPv4
    ARP, ICMP, IGMP, TCP, UDP
  • Application Protocols for IPv6
    DHCPv6, DNS, mDNS, NTP, FTP/FTPS
  • Application Protocols for IPv4
    DHCP, DNS, mDNS, SSDP, NTP, FTP/FTPS
  • Control Protocols
    HTTP/HTTPS, VISCA over IP, S700PTP, PTP-IP over SSH, TSL5.0
  • Streaming Protocols
    RTP/RTCP, RTSP, RTMP/RTMPS, SRT, NDI|HX
  • IP Stream Video Resolution
    3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
  • IP Stream Compression Format
    H.264: High / Main / Baseline Profile
    H.265: Main Profile
  • IP Stream Maximum Frame Rate
    H.264: 59.94 fps
    H.265: 59.94 fps
  • IP Stream Bitrate Control Mode
    CBR / VBR
  • IP Stream Range of Bitrate Setting
    512 Kbps to 80 Mbps
  • NDI|HX Capability
    Yes
    (pre-installed)
  • Camera Tracking Data
    free-d Type D0 / D1
  • Camera Tracking Data Multi-streaming
    Unicast (x4)
  • Supported Operation System (Windows)
    Windows 11 or later
  • Supported Operation System (Mac)
    macOS 14 or later
  • Supported Operation System (iPad)
    iPadOS 17 or later
  • Supported Operation System (Android)
    Android 14 or later
  • Supported Web Browsers (Windows)
    Google Chrome, Edge
  • Supported Web Browsers (Mac)
    Google Chrome, Safari
  • Supported Web Browsers (iPad)
    Google Chrome, Safari
  • Supported Web Browsers (Android)
    Google Chrome
  • PTZ Auto Framing (Single-Person)
    Yes
  • Multi-person Framing
    Yes (8)
  • Framing mode | Ball Sports (Basketball)
    Yes *g
  • PTZ Auto Framing (Pause)
    Yes
  • PTZ Auto Framing (AF Sync)
    Yes
  • Preset Framing/Composition Preset
    Composition
    Tracking Speed/Sensitivity
  • Lead Room Effect
    Yes
  • Face Registration
    Yes
  • Tracking Range
    Yes
  • Fixed Angle Position
    No
  • Frame/Area Indicator
    Yes *g
  • Detection Part
    Head/Ankle
  • PTZ Auto Framing File
    Load/Save *g
  • Ceiling Mount
    Yes (with Ceiling Bracket)
  • Mountable Angle
    ≦ ±15°
  • Tripod mounting screw holes
    1/4-20 UNC (x1)
    3/8-16 UNC (x1)
  • Screw holes for external devices
    Right (M3) (x2)
    Left (M3) (x2)
  • Supplied Accessories
    Lens cap (x1)
    Remote commander (RMT-RC3) (x1)
    Ceiling bracket A (x1)
    Ceiling bracket B (x1)
    Screw (M3x8) (x6)
    Screw (M4x8) (x1)
    Wire rope (x1)
    QR code sticker (x1)
    Warranty booklet (x1)
    Safety regulation (*d)
  • *a
    Without projecting object
  • *b
    Sony measurement conditions
  • *c
    1920 x 1080 only
  • *d
    Varies by country of sale
  • *e
    The output is the same image as SDI OUT1. There is no input function to the camera, such as camera control.
  • *f
    Internal recording and playback are not available when powered via PoE++.
  • *g
    Version 3.0 or later is required.
