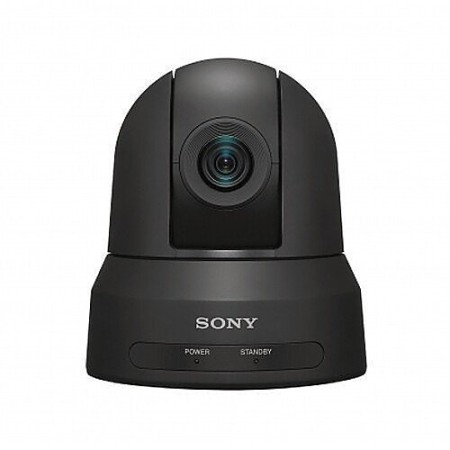

SRG-X40UH 4K remotely operated PTZ camera - Sony P...SRG-X40UH 4K remotely operated PTZ camera
Professional communication with 4K detail, natural images and 40x zoom Built for almost any space, the SRG-X40UH matches high quality images with ease of use and simple installation. This remotely controlled PTZ camera can cover everything from crowded operating theatres to huge auditoriums, making it perfect for business, education and medical settings. See all the details, textures and colours you need, with a 1/2.5-type Exmor R™ CMOS image sensor. Capture up to 4K images with minimal noise, even in low light. Create better FHD images, thanks to oversampling from the 4K sensor. Get crisp close-up shots with the SRG-X40UH, which features 20x optical zoom, and 40x zoom in FHD and 30x in 4K with Clear Image Zoom technology. Meanwhile, an horizontal viewing angle of approximately 70° lets you zoom out for much wider images. And smooth, fast PTZ movements make any transitions seamless. Place the SRG-X40UH on a desk or mount it to the ceiling for more discreet filming. Simple UVC or HDMI connections make it easy to integrate into your existing set-up. And PoE+ support and VISCA/VISCA over IP control command let you remotely operate and power it through a single LAN cable.
local_shipping FREE shipping on orders over €50.00.
- Image Sensor
1/2.5 Exmor R CMOS
- Image Sensor (Number of Effective Pixels)
Approx. 8.5M pixels
- Signal System
2160/29.97p, 25p
1080/59.94p, 50p, 29.97p, 25p
1080/59.94i, 50i
720/59.94p, 50p - 4K Capability
Yes
- Minimum Illumination (50IRE)
1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)
- Horizontal Resolution
1700 TV line (Center)(4K) , 1000 or higher TV line (Center)(FHD)
- Gain
Auto/Manual (0 to +48 dB)
High Sensitivity On - Shutter Speed
1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (50Hz system) - Exposure Control
Auto/Manual/Priority AE (Shutter, Iris)
- White Balance
Auto1/Auto2/One Push
WB/Indoor/Outdoor/Manual - Zoom Capability
30x (4K with CIZ*), 40x (HD with CIZ)
*CIZ = Clear Image Zoom - Focusing System
Auto/Manual
- Horizontal Viewing Angle
Approx. 70 degree(Wide)
- Focal Length
f=4.4mm(Wide) to 88.0mm(Tele)
F2.0 to F3.8 - Minimum Object Distance
80 mm (Wide)~
800 mm (Tele) - Pan/Tilt Angle
Pan: ±170°
Tilt: +90°/-20° - Pan/Tilt Speed (Max)
Pan: 300°/s
Tilt: 126°/s - Pan/Tilt Speed
Pan: 1.1° to 101°/s
Tilt: 1.1° to 91°/s - Pan/Tilt Speed (Slow)
Pan: 0.5° to 60°/s
Tilt: 0.5° to 60°/s - Pan/Tilt Slow Mode
Yes
- Pan/Tilt Operation Noise
NC30 or less*
* Sony measurement conditions - Preset Position
100 (VISCA)
- Picture Freeze Preset
No
- PTZ Motion Sync
No
- Auto ICR (Auto mode of IR Cut filter Removal)
Yes
- Day/Night
Yes
- Visibility Enhancer
Yes
- Image Stabilizer
Yes
- Image Flip
Yes
- Picture Setting File
No
- Flicker Cancel
On/Off
- Hide OSD Menu
On/Off
- Standby Mode
Yes
- Remote Standby
Yes
- Ver Up
Yes
- 4K Video Output
HDMI x 1
- HD Video Output
HDMI x 1
USB x 1 - Remote Video Format Switching
Yes
- HDMI Color Space
YCbCr, 4:2:2 8bit
RGB, 4:4:4 8bit - Camera Control Interface
VISCA RS-422 RJ45(In/Out)
VISCA over IP RJ-45
UVC(USB) USB Type-C (ver.2.0) - IR Remote Control
Yes
- Sync. System
INT
- UVC Format
MJPEG
- UVC Version
1.1
- Power Requirements
DC 12V (DC 10.8 to 13.2V),
PoE+(IEEE802.3at compliant) - Power Consumption
25.5W(Max)
- Operating Temperature
0 °C to 40 °C
32 °F to 104 °F - Storage Temperature
-20 °C to +60 °C
-4 °F to +140 °F - Dimensions (W x H x D)*1
158.4 x 177.5 x 200.2mm
6 1/4 x 7 x 8 inch - Mass*1
Approx. 1.6 kg
3 lb 8.43 oz - Camera Body Color
White/Black
- Size of Screw Hole for Tripod
1/4-20UNC x 1
- Mountable Angle
< ±15°
- Ceiling Mount
Yes
- Supplied Accessories
AC power adaptor (1)
IR Remote Commander Unit (1)
Ceiling bracket (2)
Wire rope (1)
Screw M3 x 8 (9)
Screw M2.6 x 6 BLACK (1)
HDMI cable fixing plate (1)
Safety regulation (1)
Download site information (1)
Warranty (1)
- *1
The values for dimensions and mass are approximate
