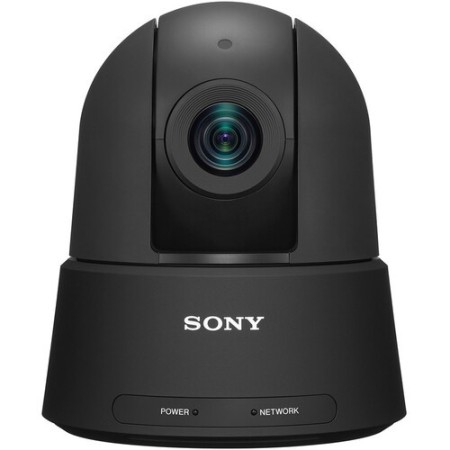

SRGA40 PTZ camera with PTZ Auto Framing Black
A Camera that Automatically and Naturally Shoots Video for you With the advanced PTZ Auto Framing feature, the camera automatically track the person in a comfortable viewing with smooth pan, tilt and zoom movement regardless of posture, movement and what one is wearing. Since the camera does most of the work automatically, the operator can spend its time efficiently.
local_shipping FREE shipping on orders over €50.00.
- Mass
Approx. 2.0 kg
Approx. 4 lb 6.5 oz - Dimensions (W x H x D)*a
Approx. 156.7 × 184.0 × 200.0 mm
Approx. 6 1/4 × 7 1/4 × 7 7/8 inches - Power Requirements (DC In)
DC 19.5 V
- Power Requirements (PoE)
PoE++ (IEEE 802.3bt Type 4 Class 8 compliant)
- Power Consumption (DC In)
≦80 W (DC 19.5 V)
- Power Consumption (PoE)
≦71.3 W (PoE++)
- Operating Temperature
0 °C to 40 °C
32 °F to 104 °F - Storage Temperature
-20 °C to +60 °C
-4 °F to +140 °F - Quietness *b
NC30 or less
- Body Color
Black / White
- Imaging Device (Type)
1/2.5 ExmorR CMOS sensor
- Number of Pixels (Maximum Effective)
Approx. 8.5 megapixels
- F-number (Maximum aperture)
F2.0 to F3.8
- Focal Length
f = 4.4 to 88.0 mm
- Focal Length (35mm format equivalent)
26.8 to 536.0 mm
- Focus range (from the front of the lens)
Approx. 80 mm to infinity
- Horizontal Viewing Angle
Approx. 70.0 deg.
- Optical Zoom
20x
- Clear Image Zoom
Approx. 1.5x (QFHD), Approx. 2x (FHD)
- Digital Zoom
12x
- Tele Convert Mode *c
Yes (2.0x)
- Focusing System
Auto / Manual
- Minimum Illumination *b
1.6lx
(F2, SS=1/30s, 50IRE, high-sensitivity OFF) - Exposure Control
Auto / Manual / Priority AE (Shutter, Iris)
- Gain
Auto / Manual
0 dB to + 48 dB (high-sensitivity ON) - Shutter Speed
1/1 to 1/10000 sec
- White Balance
Auto1 / Auto2 / One Push WB / Indoor / Outdoor /Manual
- Color Temperature Range
No
- Base Look
No
- Soft Skin Effect
No
- Built-in ND filter
No
- Night Shot
No
- Auto ICR (Auto mode of IR Cut filter Removal)
Yes
- Day/Night
Yes
- Visibility Enhancer
Yes
- Image Stabilizer
Yes
- Image Flip
Yes
- Picture Setting File
Yes
- Pan Angle
-170 deg. to 170 deg.
- Tilt Angle
-20 deg. to 90 deg.
- Pan Speed
0.5 deg./sec to 300 deg./sec
- Tilt Speed
0.5 deg./sec to 126 deg./sec
- Ramp Curve
1 steps
- Preset Position
256 (CGI) / 100 (VISCA)
- Preset Speed Unit
Speed
- Picture Freeze Preset
Yes
- PTZ Motion Sync
Yes
- PTZ Trace
No
- SDI Output
SDI OUT: BNC (x1),
3G-SDI (Level A / B), HD-SDI - HDMI Output
Type-A connector (x1)
- Optical Output
No
- UVC Output
No
- Output Format SDI OUT
1920 x 1080 / 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
1280 x 720 / 59.94p, 50p - Output Format HDMI OUT
3840 x 2160 / 29.97p, 25p, 23.98p
1920 x 1080 / 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
1280 x 720 / 59.94p, 50p
720 x 480 / 59.94p
720 x 576 / 50p - Output Format SFP+
No
- Audio Input
3.5 mm Stereo Minijack x1 (Mic / Line Selectable)
- Sync. System
Internal
- Genlock Input
No
- TC Input / TC Output
No
- VISCA In / Out
RJ-45 (VISCA IN) (x1)
RJ-45 (VISCA OUT) (x1) - Network
RJ-45 (LAN) (x1), 1000BASE-T
- Option
No
- IR Remote Control
Yes
- DC Input
IEC60130-10 (JEITA standard RC-5320A) Type5 (x1)
- Tally Ramp
Center (x1), Red / Green
- Recording Function
No
- Network / Transmission Protocols for IPv6
ICMPv6, MLD, TCP, UDP
- Network / Transmission Protocols for IPv4
ARP, ICMP, IGMP, TCP, UDP
- Application Protocols for IPv6
DHCPv6, DNS, mDNS, NTP
- Application Protocols for IPv4
DHCP, DNS, mDNS, NTP
- Control Protocols
HTTP / HTTPS, VISCA over IP
- Streaming Protocols
RTP / RTCP, RTSP, SRT, NDI|HX
- IP Stream Video Resolution
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
- IP Stream Compression Format
H.264: High / Main / Baseline Profile
H.265: Main Profile - IP Stream Maximum Frame Rate
H.264: 60 fps
H.265: 60 fps - IP Stream Bitrate Control Mode
CBR / VBR
- IP Stream Range of Bitrate Setting
512 Kbps to 50 Mbps
- NDI|HX Capability
Yes *e
- Camera Tracking Data
No
- Supported Operation System (Windows)
Windows 11 or later
- Supported Operation System (Mac)
macOS 14 or later
- Supported Operation System (iPad)
iPadOS 17 or later
- Supported Operation System (Android)
Android 14 or later
- Supported Web Browsers (Windows)
Google Chrome, Edge
- Supported Web Browsers (Mac)
Google Chrome
- Supported Web Browsers (iPad)
Google Chrome, Safari
- Supported Web Browsers (Android)
Google Chrome
- PTZ Auto Framing (Single-Person)
Yes
- Multi-person Framing
Yes (8)
- Framing mode | Ball Sports (Basketball)
Yes *f
- PTZ Auto Framing (Pause)
No
- PTZ Auto Framing (AF Sync)
No
- Preset Framing / Composition Preset
Composition
- Lead Room Effect
Yes
- Face Registration
Yes
- Tracking Range
Yes
- Fixed Angle Position
Yes
- Frame / Area Indicator
Yes *f
- Detection Part
Head
- PTZ Auto Framing File
Load / Save *f
- Ceiling Mount
Yes (with Ceiling Bracket)
- Mountable Angle
≦ ±15°
- Tripod mounting screw holes
1/4-20 UNC (x1)
- Screw holes for external devices
No
- Supplied Accessories
AC power adaptor (x1)
Remote commander (RMT-RC2) (x1)
Ceiling bracket A (x1)
Ceiling bracket B (x1)
Screw (M3x8) (x9)
Screw (M2.6x6 Black) (x1)
Wire rope (x1)
QR code sticker (x1)
Warranty booklet (x1)
Safety regulation (*d)
Download site information (x1)
AC power code (x1)
- *a
Without projecting object
- *b
Sony measurement conditions
- *c
1920 x 1080 only
- *d
Varies by country of sale
- *e
Version 3.0 or later is required.
- *f
Version 4.0 or later is required.
