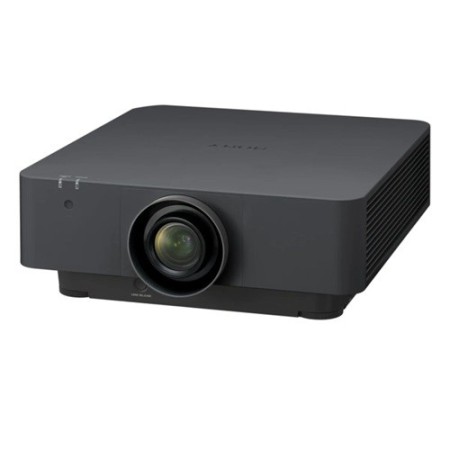

Sony VPLFHZ85 Laser Projector
Bold, rich colour even in brightly lit rooms Even powerful projectors can suffer from washed-out image colours in strongly-lit rooms. Exclusive to Sony, Bright View delivers high-impact images that don’t sacrifice colour. Newly improved Reality Creation ensures images, diagrams and text look clear and sharp, even in bright conditions. Intelligent Settings with Ambiance match projected images with your environment for an enhanced viewing experience: there’s even an ambient light sensor to measure room brightness.
local_shipping FREE shipping on orders over €50.00.
- Display system
3 LCD system
- Size of effective display area
New LCD panel 0.76" (19 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
- Number of pixels
6,912,000 (1920 x 1200 x 3) pixels
- Focus
Powered
- Zoom - Powered/Manual
Powered
- Zoom - Ratio
Approx. x 1.6
- Throw ratio
1.39:1 to 2.23:1
- Lens shift - Powered/Manual
Powered
- Lens shift - Range Vertical
-5%, +70%
- Lens shift - Range Horizontal
+/- 32%
- Type
Laser diode
- Screen size
40'' to 600'' (1.02 m to 15.24 m) (measured diagonally)
- Mode: Standard
7300lm *3 / 8000lm (Center)*4
- Mode: Middle
5840lm
- Mode: Low
-
- Mode: Standard
7300lm
- Mode: Middle
5840lm
- Mode: Low
-
- Mode: Standard
20000 hours
- Mode: Middle
30000 hours
- Contrast ratio (full white / full black)
∞:1
- Horizontal
15 kHz to 93 kHz
- Vertical
23 Hz to 63 Hz
- Computer signal input
Maximum signal resolution: 1920 x 1200 *6
- Video signal input
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p,3840/60p, 3840/30p, 3840/25p, 3840/24p,4096/60p, 4096/30p, 4096/25p, 4096/24p
- Horizontal
+/- 30 degrees
- Vertical
+/- 30 degrees
- INPUT A
RGB / Y PB PR input connector:Mini D-sub 15 pin (female)
Audio input connector: Stereo mini jack - INPUT B
DVI input connector: DVI-D 24-pin (single link), HDCP support
Audio input connector: Shared with INPUT A - INPUT C
HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support - INPUT D
HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)
- VIDEO IN
Video input connector: BNC
Audio input connector: Shared with input A - OUTPUT A
Monitor output for Input A Connector: Mini D-sub 15-pin (female)
Audio output connector: Stereo mini jack - OUTPUT B
Monitor output for Input B Connector: DVI-D 24-pin (single link), HDCP not supported
Audio output, Monitor out connector: Stereo mini jack - REMOTE
D-sub 9-pin (male) / RS232C
- LAN
RJ45, 10BASE-T/100BASE-TX
- IR (Control S)
Stereo mini jack, Plug in power DC5V
- USB
TYPE-A (for F/W update) , TYPE-A (for Power supply)
- Acoustic Noise (Mode: Standard / Middle)
38 dB / 36 dB
- Operating temperature / Operating humidity
0°C to 45°C (32°F to 109°F) / 20% to 80% (no condensation)
- Storage temperature / Storage humidity
-10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)
- Power requirements
AC 100 V to 240 V, 5.1 A to 2.2 A, 50 Hz / 60 Hz
- AC 100 V to 120 V
Mode: Standard: 506 W
- AC 220 V to 240 V
Mode: Standard: 474 W
- AC 100 V to 120 V
0.5W (when “Standby mode” is set to “Low”)
- AC 220 V to 240 V
0.5W (when “Standby mode” is set to “Low”)
- AC 100 V to 120 V
9.8 W (LAN)
10.6 W (HDBaseT)
10.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard") - AC 220 V to 240 V
10.9 W (LAN)
11.6 W (HDBaseT)
11.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
- Standby Mode / Networked Standby Mode Activated
Approx. 10 Minutes
- AC 100 V to 120 V
1617 BTU/h
- AC 220 V to 240 V
1727 BTU/h
- Dimensions (W x H x D) (without protrusions)
460 x 169 x 494 mm
18 1/8 x 6 3/4 x 19 1/2 inches
- Mass
Approx. 13 kg (29 lb)
- Projection Lens
VPLL-3003 / 3007 / Z3009 / Z3010 / Z3024 / Z3032
- *1
With supplied standard lens
- *2
The figures are approximate. They vary depending on the environment or how the projector is used.
- *3
The value is in accordance with ISO 21118, and may differ depending on the actual unit. Brightness and contrast vary depending on use conditions and environments.
- *4
The value is light output measured at centre area of screen in Standard mode, and average of all products shipped.
- *5
Estimated time until light output declines to 50 % varies depending on environment.
- *6
Available for VESA Reduced Blanking signal.
VPLFHZ85B.SYQ
