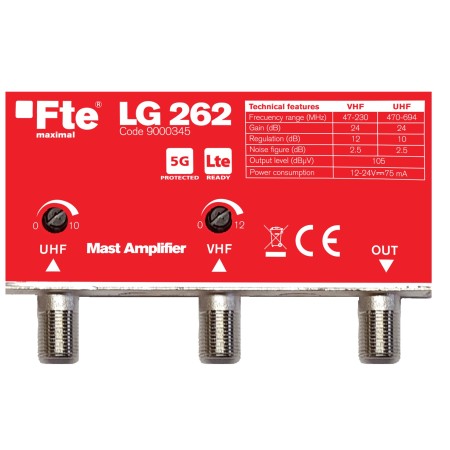

FTE LG262 LTE2 UHF/VHF Mast Amplifier 24dB
local_shipping FREE shipping on orders over €50.00.
- Inputs and bands: 2: 1 VHF / 2 UHF
- Frequencies (MHz) 47 - 230 / 470 - 694
- Gain (dB): VHF24, UHF24
- Regulation (dB): VHF12, UHF10
- Output level (dBuV) : 110
- Noise figure (dB): VHF 2.5, UHF 2.5
- Maximum consumption (mA): 75
- Feeding (VDC): 12 to 24
- Dimensions (W x H x D) (mm): with box 115 x 110 x 57 mm, without box 104,6 x 44 x 24,2 mm
- Included accesories: Outdoors box EQ BOX, Cable tie 15 mm
- Type
- Mast Amplifier
- Total Output
- 105db
- Inputs
- 2
- Outputs
- 1
- UHF Inputs
- 1
- VHF Inputs
- 1
- Gain per output
- 24db
