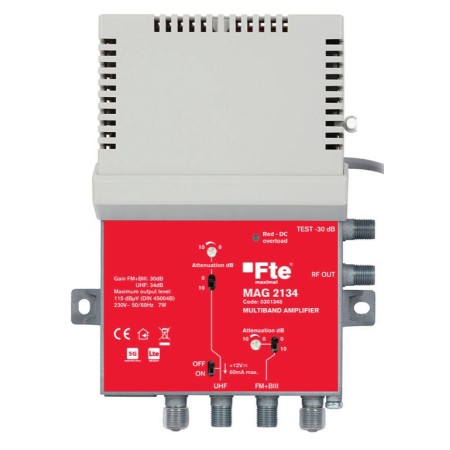

FTE MAG2134 Multiband Amplifier 1xUHF/VHF/FM 34dB Gain 115dB Max Output
local_shipping FREE shipping on orders over €50.00.
- Inputs : 1x FM+BIII, 1 UHF
- Output : 1 + 1 Test (-30dB)
- Frequency range : FM+BIII (88..108MHz) (174..230 MHz)
- Frequency range : UHF 470..694 MHz
- Gain : FM+BIII : 30 dB
- Gain : UHF : 34 dB
- Noise figure, typical : FM/BIII < 6dB
- Noise figure, typical : UHF < 5dB
- Maximum output level : IMD3=60dB (DIN45004B) 115 dBµV, IMD3=60dB 112 dBµV
- Gain adjustment : 0 / -20 dB
- Return loss : >10 dB
- Preamplifiers feeding : 12V 60 mA Max.
- Supply voltage limit values and power consumption : 200-250V~ 50/60 Hz / 7W (Without external DC loading)
- Operative temperature range : -20º / +50ºC
- Type
- Multiband Amplifier
- Total Output
- 115db
- Inputs
- 2
- Outputs
- 1
- UHF Inputs
- 1
- VHF Inputs
- 1
- Gain per output
- 34db
