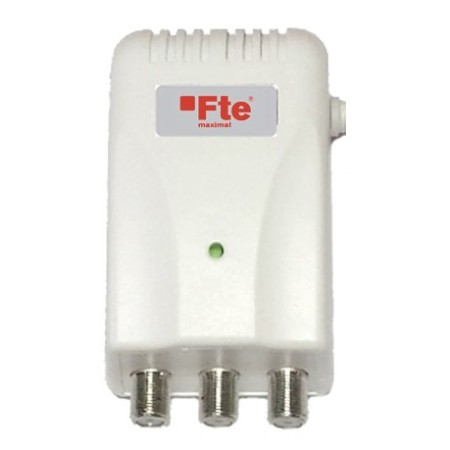

FTE Amplifier Mast Indoor Power Supply 12V 2out LPS1240
local_shipping FREE shipping on orders over €50.00.
- Inputs / Outputs: 1 / 2 Output
- Voltage: 12 VDC
- Maximum current: 400 mA
- Power pass OUT-IN: Yes
- Maximum voltage at the output: 21 Vdc
- Power Pass Maximum Current: 500 mA
- Frequency range: 47 – 2150 MHz
- Insertion loss 47-862 MHz: < 4dB 950-2150 MHz: < 5.5 dB
- Feeding: 100-240V~ / 50-60 Hz
- Consumption: 7.2 W (230 Vac)
- Connector type: F female
- Installation type: Indoor
- Source type: Switched
- Color: White
- Dimensions (W x H x D): 45 x 52.5 x 94.5 mm
- Type
- Mast Amplifier
- Inputs
- 1
- Outputs
- 2
- UHF Inputs
- 1
